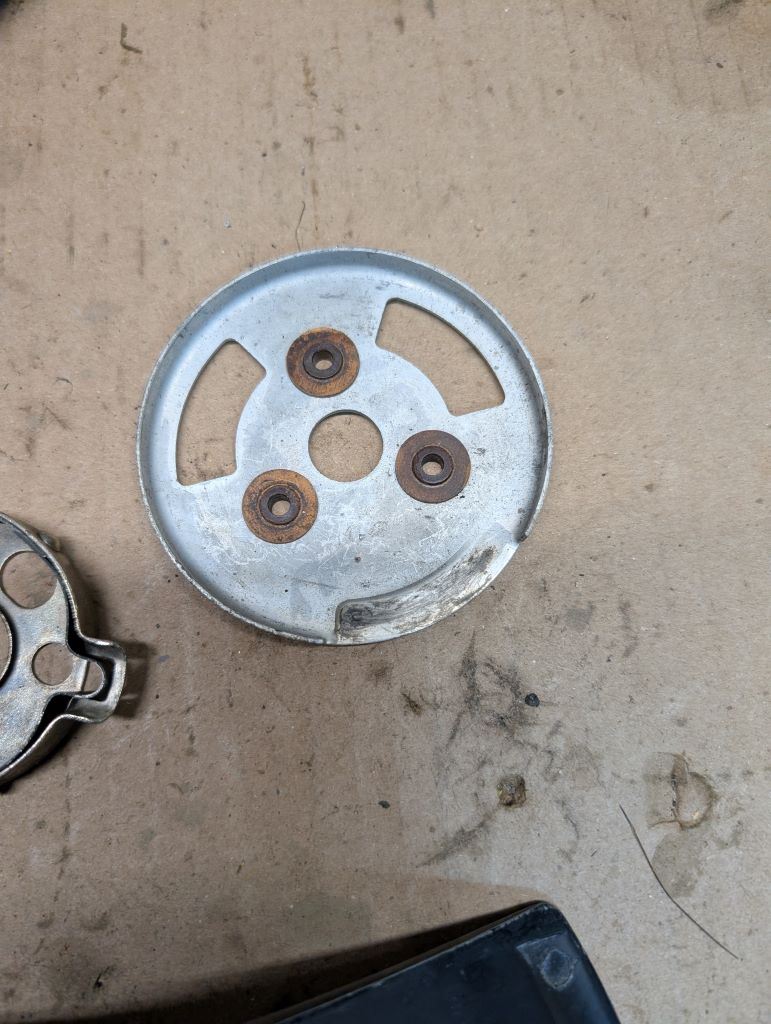

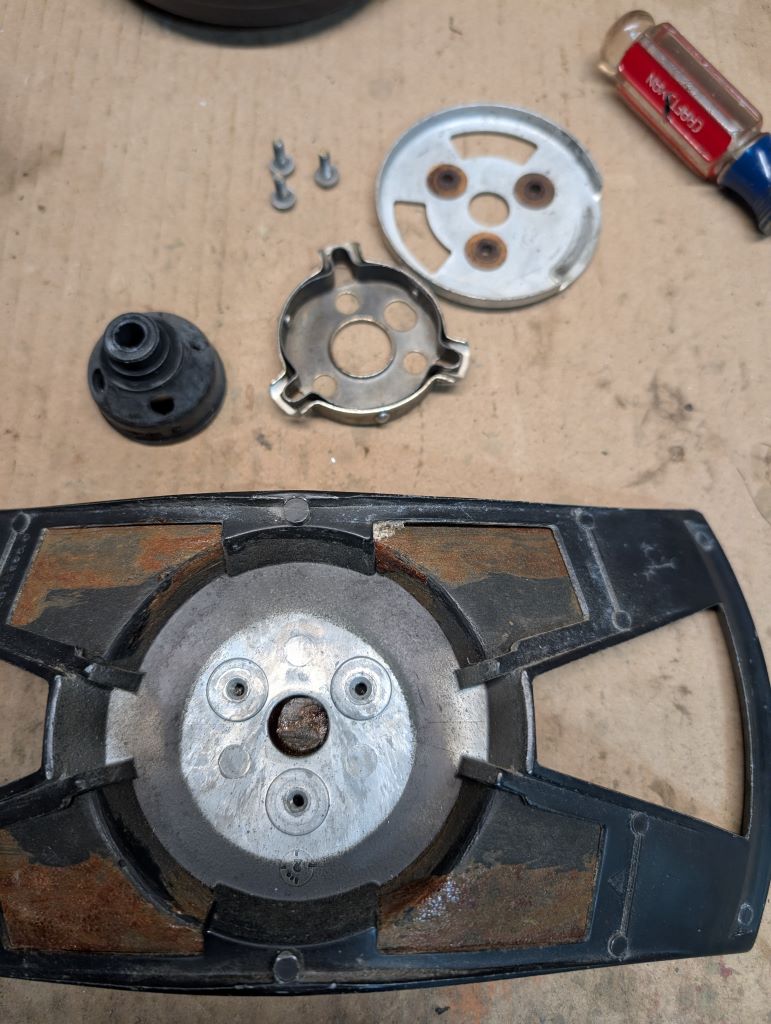

I'm assembling my horn pad and can't find a place to connect the brown ground wire from the contact ring. Do I have the wrong base plate?
Click to view attachmentClick to view attachmentClick to view attachment

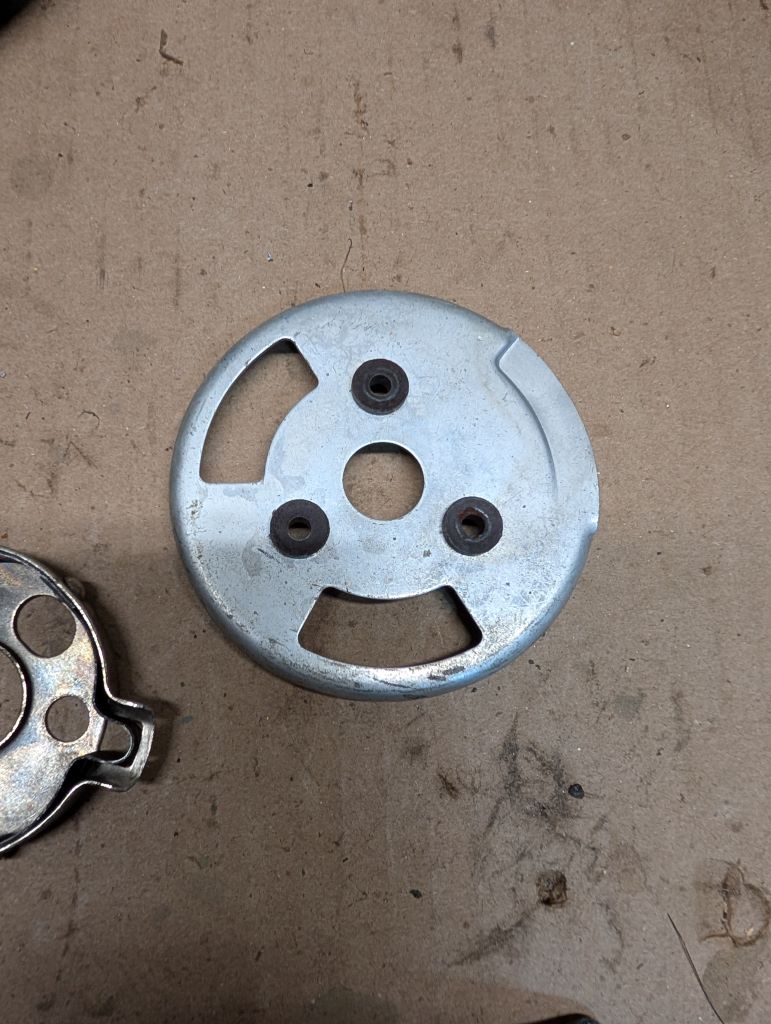

I think this is what it is supposed to look like:Click to view attachment

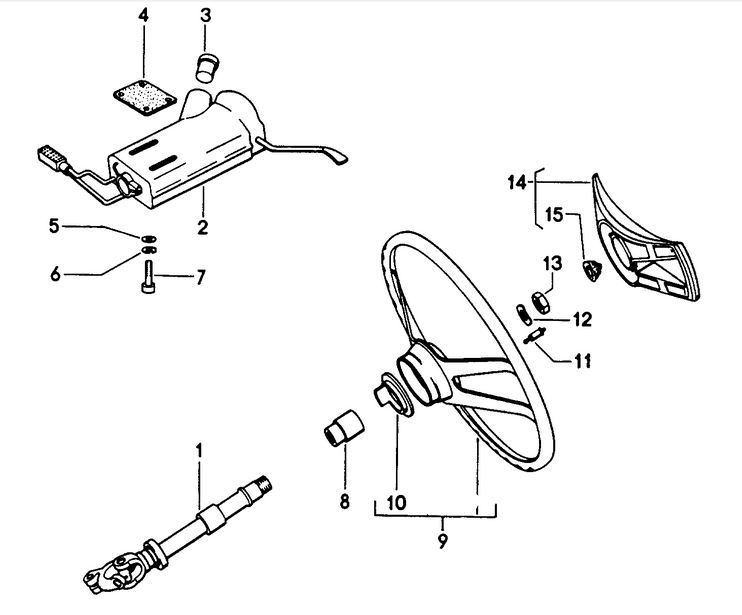

And the PET Parts List for a 1974 doesn't show the contact pin:Click to view attachment

Thanks.

George

I don’t have a factory steering wheel, so not sure about the original design, but you could just crimp a metal loop end piece on your ground wire and slide one of the three bolts through it. That will give you the same result easily.

(could be wrong on this, but basing this off 911 stock setup)

The black wire from the fuse panel makes the horn sound when it's grounded. Unlike an aftermarket MOMO you don't use a second wire because the stock horn button is a pad that is spring loaded. When you depress the horn pad, it contacts the metal ring and grounds it. The horn wire connects to the pad, then the pad touches the metal of the column grounding it and sounding the horn.

Ah makes sense. I have a Momo and mine does have two wires. Never seen the stock set up in the car, but that sounds right.

70-71 fours had a contact wiper pin like a 914-6. So there was no wire. Later fours got a different setup with the wire. So early horn rings didn't have a place to attach a wire.

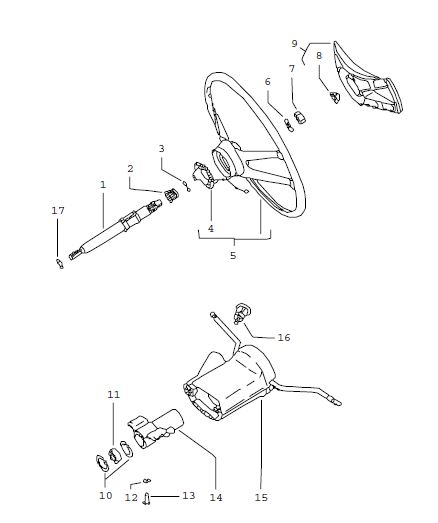

Early four setup... see item 11

Click to view attachment

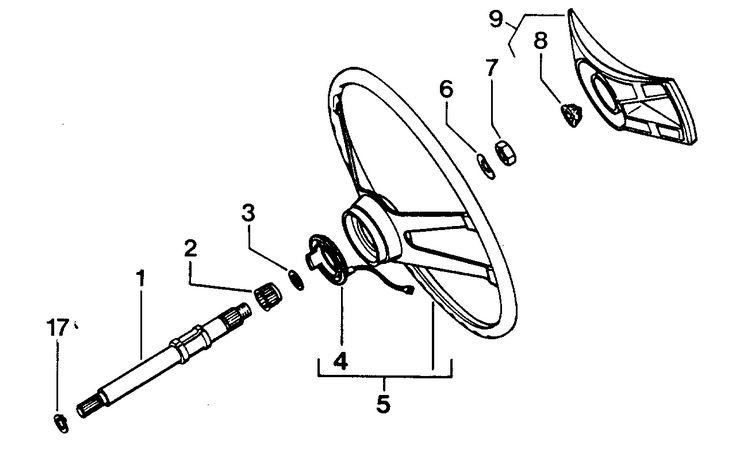

Late 4 setup... see item 4

Click to view attachment

The late setup matched the VW production at the time.

Ahhh. So, I must have an early horn ring. That explains everything.

I'm going to try what Chad911sc suggested and attach the ground to one of the three bolts.

Thank you everybody!

I love this forum and the people here.


George

Epilog,

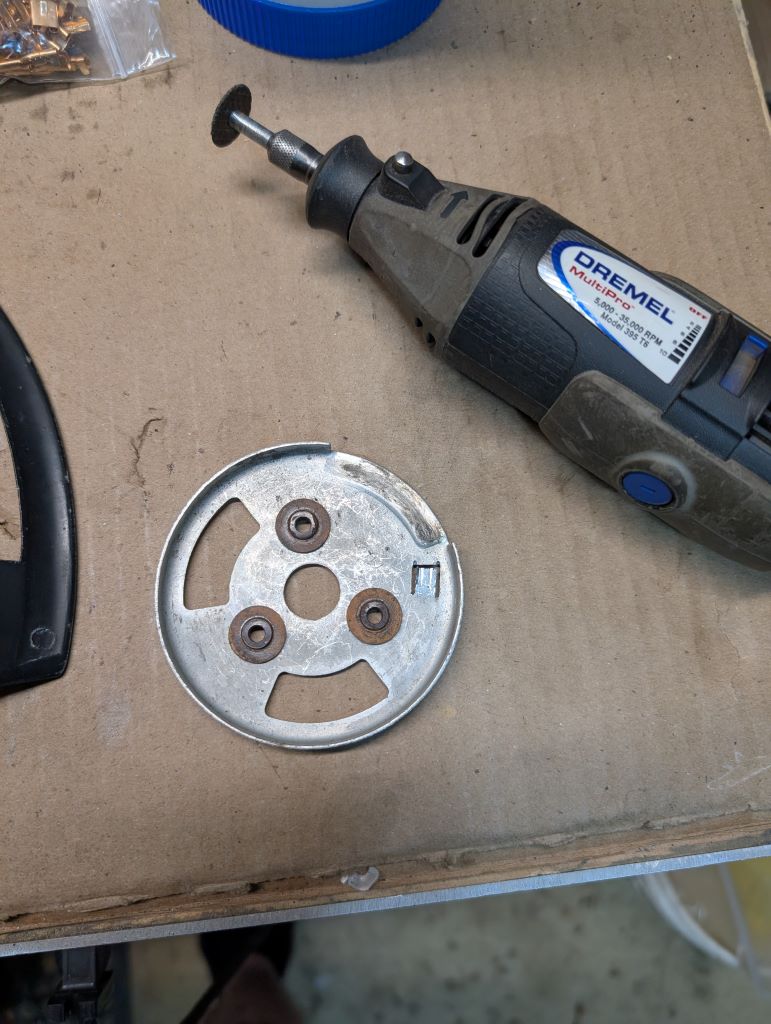

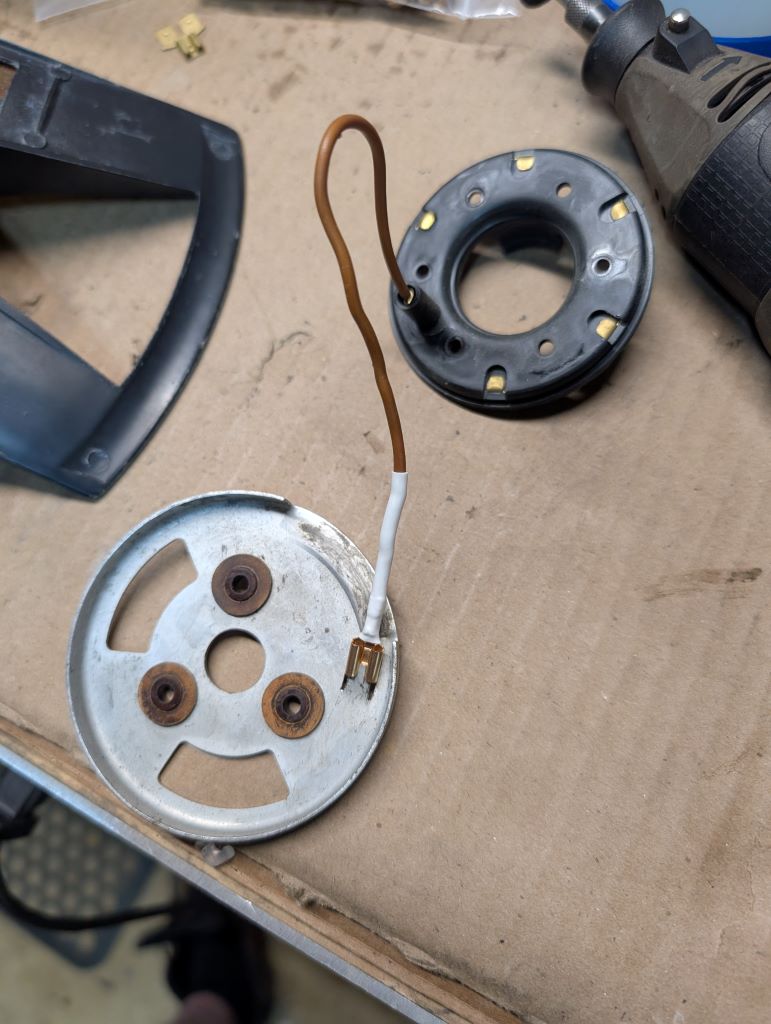

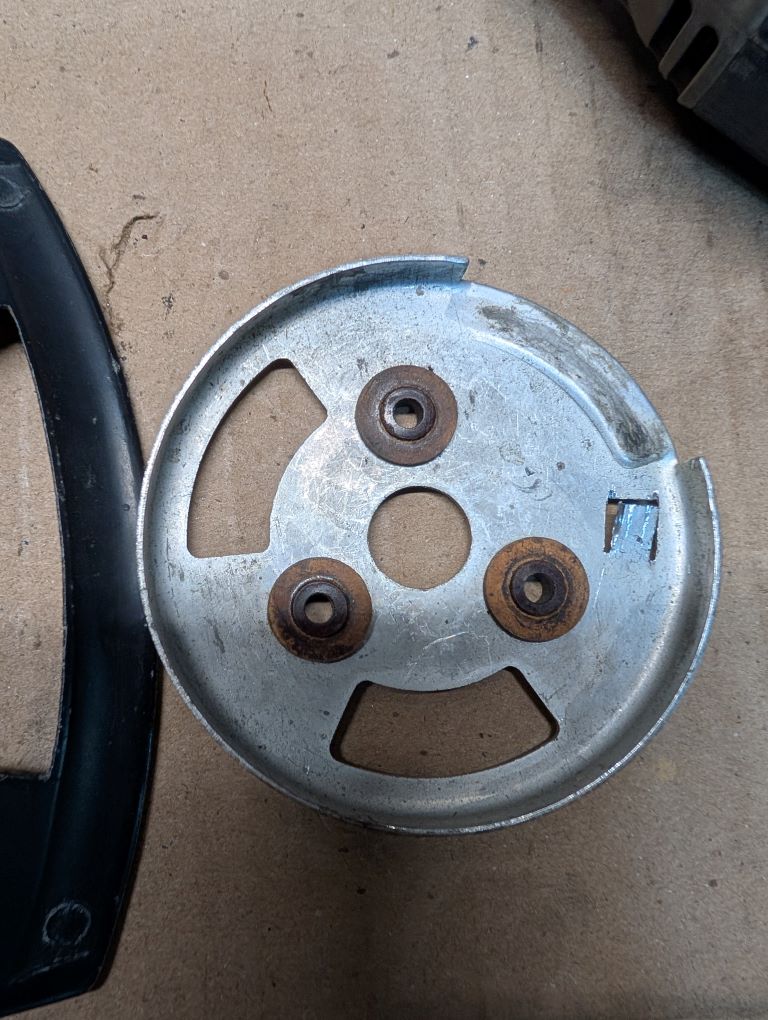

It turns out that the early horn base is insulated from the three bolts by little plastic spacers. So, I used my Dremel tool to cut a tab to fit a standard spade terminal.

Click to view attachment
Click to view attachment
Click to view attachment

The horn now works great. Thank you to everybody!


George

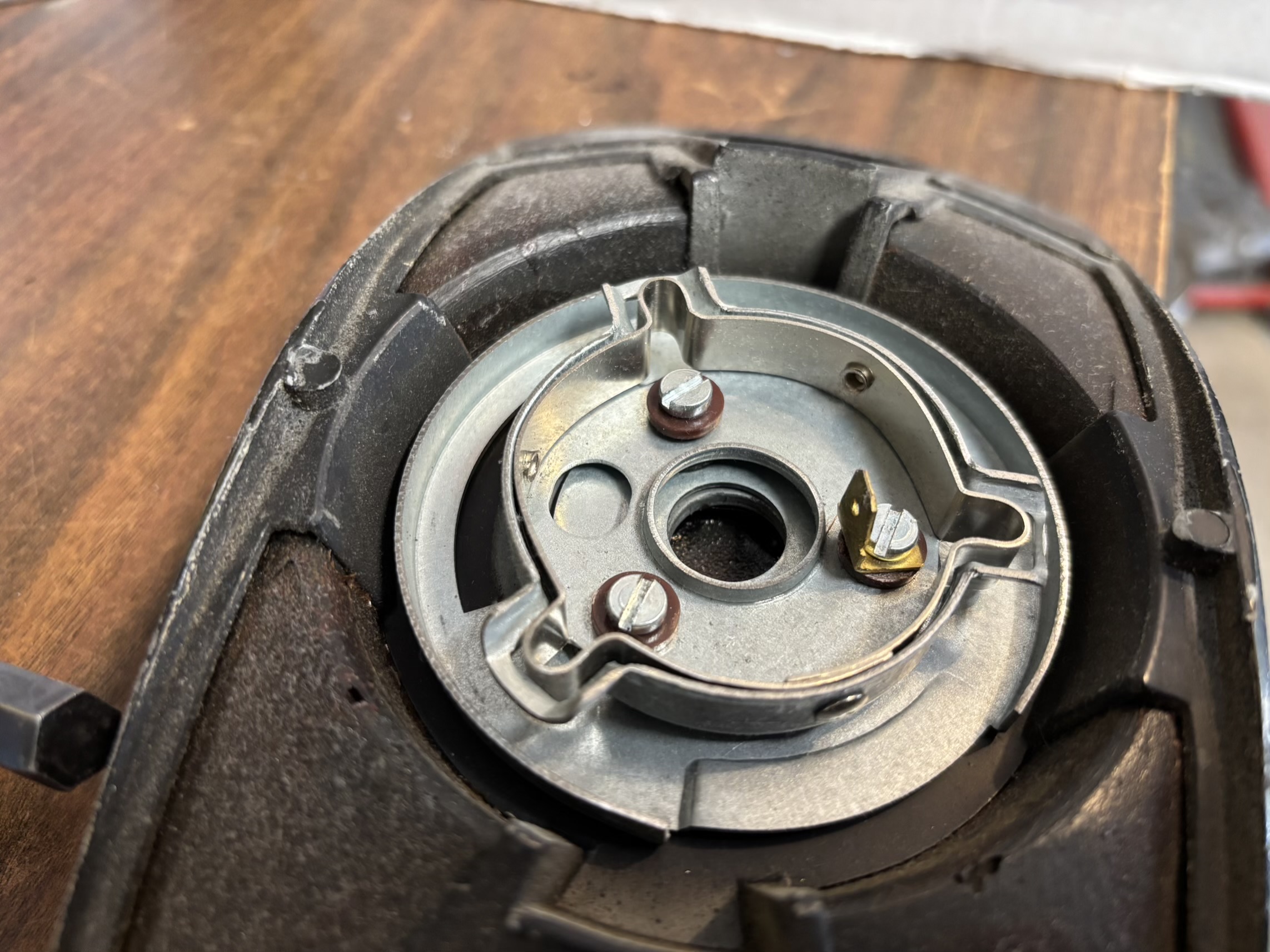

Here’s a picture of my stock 1975 wheel. It has a spade on one of the screws.
Click to view attachment

That spade is mounted to the screw, not the horn ring. If you hook that to the horn wire, the horn is going to sound all the time.
